Standard ZChiller – 9″ diameter, 3.5″ tall, made from 102″ of copper tubing. Our original design created with small-batch homebrewers in mind. Compact, efficient, and recommended for batches of 7.5 gallons or less.

Standard ZChiller Wort Flow Rate vs. Wort Final TemperatureStandard ZChiller Wort Flow Rate vs. Wort BTU Loss Rate

Weight

7.2 lbs

Dimensions

13.75 x 4.25 x 9.75 in
Click the graphs to get a better view!

Large ZChiller – 9″ diameter, 5.125″ tall, made from 154″ of copper tubing. Our most versatile chiller, the Large ZChiller can handle much larger batches that require a higher degree of cooling while at the same time retaining the ability to be used for small batches as well. If you want flexibility and true brewing freedom, this is the chiller for you.

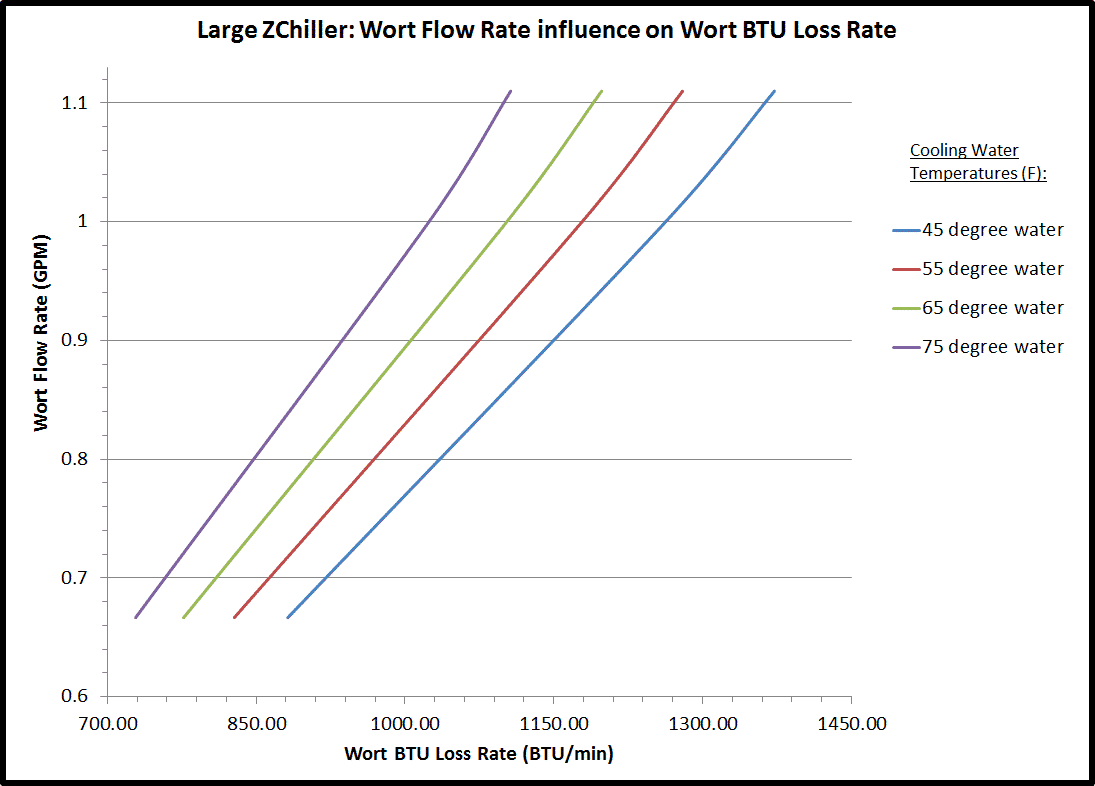

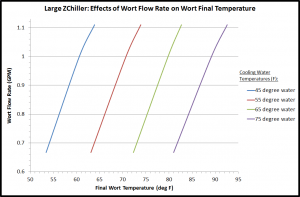

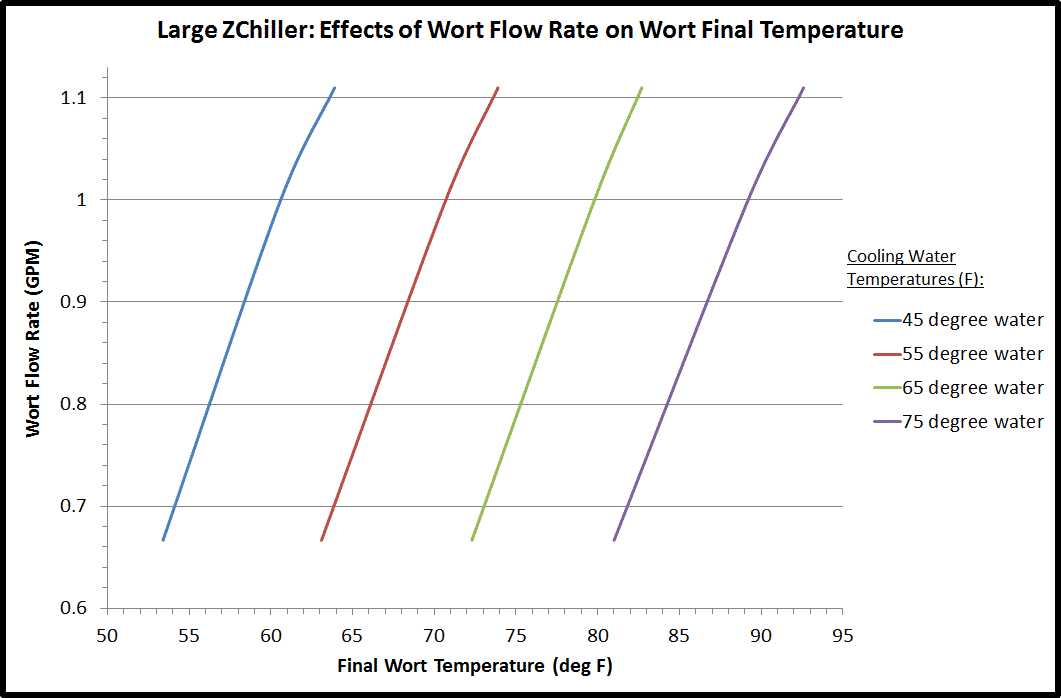

Large ZChiller Test 1 Large ZChiller Test 2

Weight

10.6 lbs

Dimensions

14.25 x 6 x 9.75 in
Click the graphs to get a better view!

Square ZChiller – 8.75″ side length, 7.25″ tall, made from 134″ of copper tubing. Distinctive design delivers cooling rates comparable to the Large ZChiller with a brand new look to spice up your brewing rig. If you’re looking for a unique chiller with a bit of flash that can handle a variety of batch sizes, look no further.

Square ZChiller Test 1 Square ZChiller Test 2

Weight

9.6 lbs

Dimensions

12.75 x 13 x 9.5 in
Click the graphs to get a better view!
